      Balloon Pump

      Materials:

      Equipment

      3" external diameter x 24" PVC pipe Drill with bit the size of the air nossle
      4" X 27 1/2" PVC pipe Grinder to smoothe and groove PVC pipe
      3" trap (must fit over the 3" PVC pipe) Saw to cut PVC and Wood
      3" tiolet flange (must fit over the 3" PVC pipe)
      4" connecter (must fit over the 4" PVC pipe)
      4" cap (must fit over the 4" PVC pipe)
    1. 2 1/2" rubber ball
    2. 1/4" air nossle
    3. 1 board 7" X 8" X 1/2" with a 4" diameter hole in the middle
      1 board 12" X 12" X 1/2"
      4 Nuts and Bolts to attatch Flange to 12" X 12" Board

      Directions:

      Use Plumbers glue for all "attatchments"
      1. drill hole in center of cap.
      2. Attatch air nossle securely

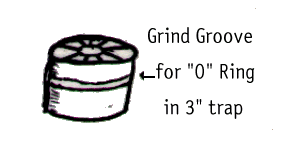

      3. Grind Groove for "O" Ring
      4. Attatch Trap to end of 3" X 24" pipe
      5. Attatch Sleeve, 7" X 8" board and Cap with nossell to 4" pipe
      6. Attatch 3" Toilet Flange to bottom of 3" PVC Pipe Grind / Sand as needed to fit
      Bolt Flange to 12" X 12" Board
      Place Rubber Ball on trap
      Place 4" PVC assembly over 3" PVC assembly Grind / Sand to fit
      Your pump is finished!

      To Operate:
